Rectangle Model

Applications:

Straight fibers; thick short fibers; crystals; carbon fibers; in general any shape that isn't circular where a length and width are needed.

Available measures:

• Bounding Rectangle Width
• Bounding Rectangle Length
• BR Width and BR Length are the dimensions of the smallest rectangle (in area) that encloses the particle's silhouette.
• Bounding Rectangle Aspect Ratio
• BRAR is the ratio of Bounding Rectangle Length to Bounding Rectangle Width.
• Rectangularity
• Rectangularity = (actual shape area) / (BRL * BRW). This measures how closely the shape resembles a rectangle, with 1.0 representing a perfect rectangle.

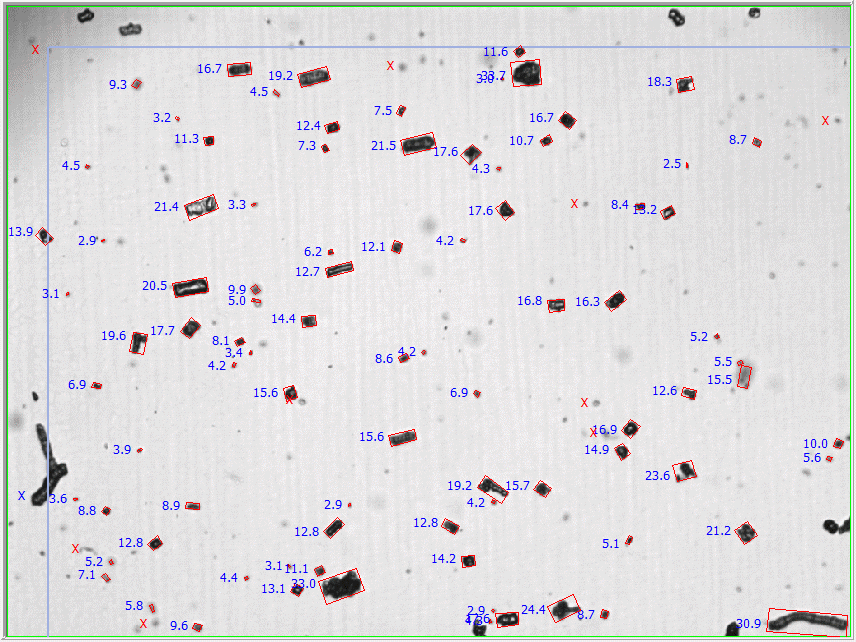

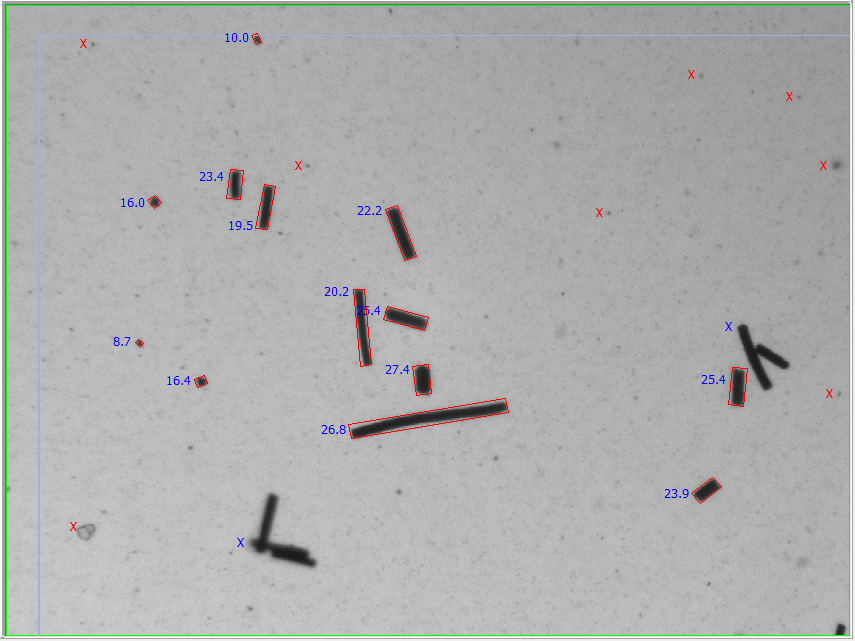

Images showing BR Width values. Note that overlapping objects are bypassed.
