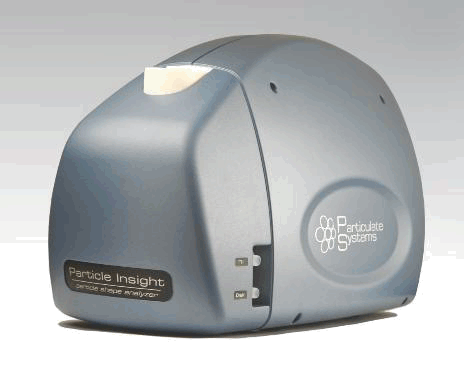

Primary Features of the Particle Insight Instrument

• Requires   ml of liquid containing the sample in suspension
• A 10,000-particle run takes between 15 and 60 seconds, depending on camera resolution, particle density, number of active size/shape measures, and real-time image-saving options
• Fully controllable from software, including drain and fill cycles
• High resolution camera for accuracy - pixel dimensions up to 2600 x 1940
• Real time analysis of images as they come from the camera
• Real time data displays during a run
• Powerful image analysis features including adaptive threshold and focus discrimination

• Six particle shape models
• 28 different size and shape measures
• Size range:
  • Diameter measures: 2 to 400 microns
  • Width measures: 5 to 100 microns
  • Length measures: 5 to 1000 microns
• Option to save all run images as disk files

• Option to save data on all particles during a run, for post-process filtering and analysis
• Commonly-used distribution statistics, including mean, std. deviation, mode, skew and percentiles
• Various ways of presenting and saving data histograms and statistics
• Safety features to prevent accidental overwriting of data files
• Implements most of the 21-CFR-11 data security standard
